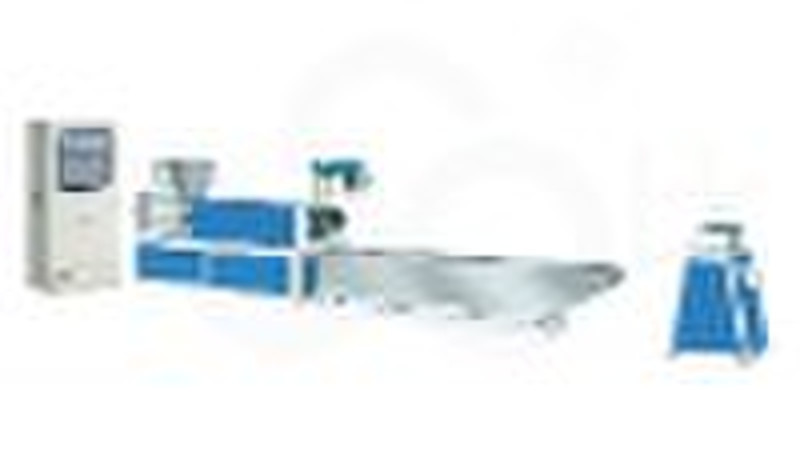

Plastic Recycling Machine

Plastic Recycling Machine This machine is suitable for regeneration and granulation of waste plastics, as HDPE, LDPE, and PP, etc. It is equipped with quick motor-operated filter-screen-replacing unit and automatic temperature control. The granulating crusher uses adjustable speed motor, pelleting with an extruding machine at the same discharging speed synchronistically. The unit is easy to operate, with a high output, steady performance, and favorable economic benefit. Main Technical Variables: Model SJ-90 SJ-100 SJ-110 SJ-120 Type Diameter of Screw Stem φ90 φ100 φ110 φ120 Major Diameter Ratio of Screw Stem L/D 20:1 -22:1 L/D 20:1 -22:1 L/D 20:1 -22:1 L/D 20:1 -22:1 Rational Speed of Screw Stem 10-100r/min 10-100r/min 10-100r/min 10-100r/min Main Motor Power 22kw 30kw 37kw 45kw Output 68kg/h 95kg/h 120kg/h 135kg/h Weight of overall(kg) 2600kg 2800kg 3000kg 3200kg Cover dimensions (l*w*h) (mm) 4000*1500*1800 4000*1500*1800 4000*1500*1800 4000*1500*1800
